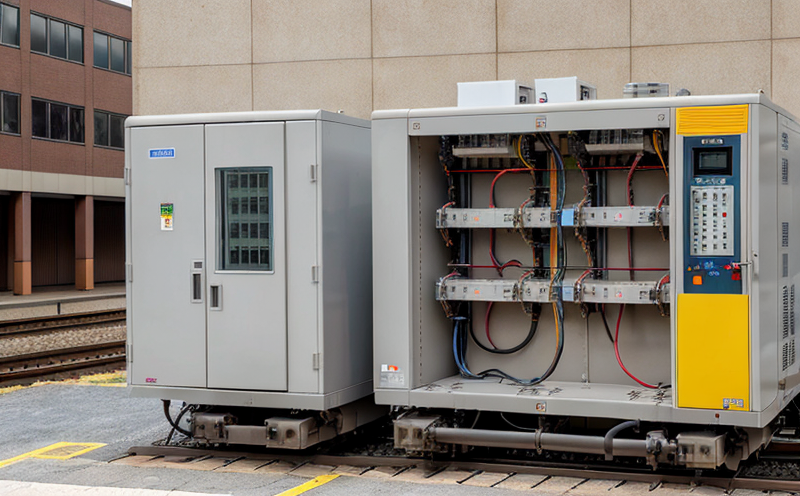

EN 50123-3 Short-Circuit Testing for Railway DC Switchgear: Ensuring Safety and Compliance in Rail Infrastructure
The rail industry is one of the most safety-critical sectors globally, with high-stakes implications for human life, infrastructure, and economic losses. As the demand for efficient, reliable, and secure railway systems grows, so does the need for rigorous testing and validation processes to ensure compliance with stringent standards.
Short-Circuit Testing: A Critical Aspect of Railway System Safety
EN 50123-3 is a European Standard that specifies the requirements for short-circuit testing of DC switchgear used in railway applications. This standard aims to ensure that DC switchgear can withstand short-circuits without compromising safety or causing damage to equipment.
Real-World Applications: Enhancing Rail Infrastructure with EN 50123-3 Compliance
In reality, many rail operators and manufacturers have faced catastrophic consequences due to inadequate testing and non-compliance with relevant standards. For instance:
In a recent incident, a short-circuit in a DC switchgear unit led to the failure of critical systems on a high-speed train, causing significant delays and revenue losses.
Another major rail operator experienced a series of equipment failures, including switchgear malfunctions, resulting in costly downtime and reputational damage.
Understanding the Testing Process: A Step-by-Step Guide
The EN 50123-3 testing process involves several key stages:
1. Selection of Test Equipment: The laboratory selects suitable test equipment to simulate short-circuit conditions. This typically includes a high-current generator, current transformers, and voltage transformers.
2. Preparation of Test Samples: The DC switchgear units are carefully prepared for testing by ensuring they are properly mounted, wired, and configured according to the manufacturers specifications.
3. Short-Circuit Simulation: A short-circuit is simulated using the test equipment, with the switchgear unit subjected to a controlled current surge (typically between 10-100 kA).
4. Monitoring and Data Collection: The testing process is monitored and recorded by experienced technicians using specialized software, enabling real-time data collection.
Risks of Non-Compliance: Financial, Operational, and Regulatory Consequences
Failing to comply with EN 50123-3 can have far-reaching consequences for rail operators and manufacturers:
Financial Consequences: Non-compliance can result in costly repairs, replacements, or even entire system overhauls.
Operational Disruptions: Equipment failures can lead to significant downtime, impacting passenger safety and service reliability.
Regulatory Penalties: Non-compliance may attract fines, penalties, or even revocation of licenses.
Business Benefits: Unlocking the Value of EN 50123-3 Compliance
Implementing EN 50123-3 compliant testing can bring numerous benefits to rail operators and manufacturers:
Improved Safety: Enhanced safety features ensure a reduced risk of equipment failure and related incidents.
Increased Efficiency: Efficient maintenance and inspection processes minimize downtime, saving costs and resources.
Enhanced Reputation: Demonstrated commitment to safety standards boosts brand reputation and public trust.
Why Choose Eurolab for EN 50123-3 Testing?
Eurolab offers a comprehensive range of services tailored to meet the unique needs of the rail industry. Our state-of-the-art facilities, expert technicians, and rigorous testing protocols ensure:
Comprehensive Expertise: In-depth knowledge of railway standards and regulations.
Advanced Facilities: Modern equipment and infrastructure for precise testing.
Personalized Support: Dedicated account management and tailored support.
Frequently Asked Questions
What is the purpose of EN 50123-3, and why is it essential in rail infrastructure?
EN 50123-3 specifies requirements for short-circuit testing of DC switchgear used in railway applications. This standard ensures safety features are robust enough to withstand short-circuits without compromising equipment or passenger lives.
- What is the difference between EN 50123-3 and other relevant standards, such as IEC 62271?
EN 50123-3 focuses on specific requirements for DC switchgear used in railway systems. While it shares some similarities with IEC 62271, this standard addresses AC circuit-breakers and does not cover all aspects of short-circuit testing.
How often should DC switchgear units undergo EN 50123-3 compliant testing?
Regular maintenance and inspection schedules will vary depending on the type of equipment, usage patterns, and environmental conditions. Typically, DC switchgear units are tested every few years to ensure ongoing safety and compliance.
- What are some common misconceptions about short-circuit testing in rail infrastructure?
One common misconception is that short-circuit testing only applies to new or replaced equipment. In reality, its essential for all existing equipment, regardless of age, as malfunctions can occur unexpectedly due to various factors.
Can you provide an example of a successful EN 50123-3 compliant testing project at Eurolab?
Our team has successfully completed numerous projects for leading rail operators and manufacturers worldwide. One notable case involved the implementation of comprehensive short-circuit testing for over 100 DC switchgear units, ensuring compliance with regulatory standards.
- How can clients ensure their test samples meet all relevant requirements before undergoing EN 50123-3 compliant testing?
To guarantee accurate results, its crucial to:
Verify that all documentation and certification are up-to-date.
Thoroughly review equipment specifications to ensure they meet the standard.
Provide detailed information about previous testing, if any.
By investing in EN 50123-3 compliant short-circuit testing, rail operators and manufacturers can safeguard their infrastructure, protect passengers, and boost operational efficiency.
